PicoMaster 100 Direct Laser Writer

pdfIcon  PicoMaster 100 brochure

UV direct laser writer for maskless lithography

PM 100

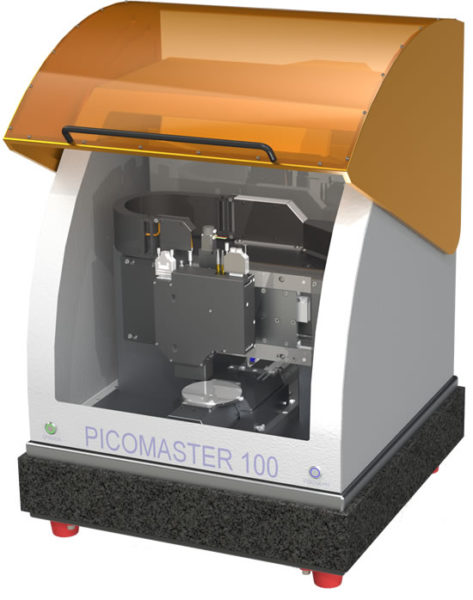

The PicoMaster 100 is a versatile UV laser writer with ultra high precision components, specifically designed to give the user the highest degree of freedom to create micro structures in photo sensitive layers. The rasterizing principle of the machine ensures proper and constant exposure over the whole surface. Scanning the 4" substrate at high speed and stepping the laser head with a software adjustable pitch.
Supporting up to 255 levels of grayscale or pure binary mode allows for 3D optical structures, surface structures as well as mask projects makes the PicoMaster 100 the ideal Litho tool for R&D.

When connected to an air conditioning unit to supply conditioned air, a build in Hepa filter will create a clean cross flow.

The massive base frame supported by isolation mounts filter out ground frequencies to ensure minimum vibrations in the system.



Optics

WM

The full optical path is contained in a small easily changeable module. By keeping the optical path as short as possible, the pointing stability is greatly increased.

The laser controlled autofocus system automatically corrects for surface errors or wedge shaped substrates.

Auto NA switch on request.
